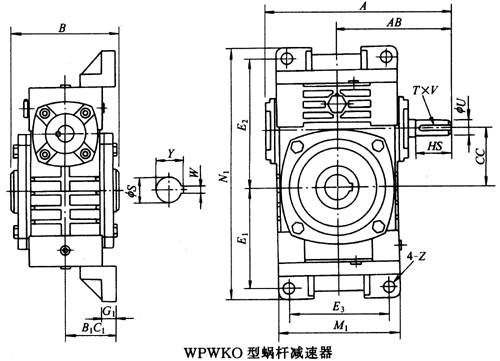

规格 | 减速比 | A | AB | B | AC | BC | AD | BD | CC | HL | H | H1L1 | H1 | B1C1 | M1 | N1 |
40 | 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60 | 149 | 89 | 90 | 95 | 61 | 78 | 42 | 40 | 35 | 125 | 45 | 135 | 45 | 95 | 187 |
50 | 175 | 107 | 110 | 111 | 68 | 85 | 50 | 50 | 35 | 150 | 50 | 165 | 50 | 111 | 226 | |
60 | 198 | 122 | 120 | 127 | 76 | 105 | 55 | 60 | 42 | 177 | 60 | 195 | 55 | 127 | 257 | |
70 | 231 | 140 | 132 | 152 | 86 | 125 | 65 | 70 | 55 | 215 | 73 | 233 | 65 | 152 | 305 | |
80 | 261 | 160 | 150 | 169 | 102 | 140 | 70 | 80 | 65 | 250 | 83 | 268 | 70 | 174 | 350 | |
100 | 322 | 190 | 174 | 216 | 117 | 180 | 90 | 100 | 80 | 310 | 100 | 330 | 90 | 224 | 410 | |
120 | 381 | 229 | 180 | 256 | 124 | 220 | 100 | 120 | 95 | 370 | 120 | 395 | 100 | 264 | 494 | |
135 | 433 | 260 | 214 | 296 | 147 | 260 | 110 | 135 | 105 | 425 | 135 | 455 | 110 | 304 | 559 | |
155 | 504 | 302 | 256 | 345 | 185 | 280 | 120 | 155 | 103 | 461 | 135 | 493 | 140 | 345 | 605 | |
175 | 545 | 325 | 282 | 374 | 192 | 320 | 140 | 175 | 123 | 521 | 160 | 558 | 150 | 374 | 675 | |
200 | 587 | 350 | 324 | 412 | 230 | 360 | 150 | 200 | 130 | 575 | 175 | 620 | 175 | 424 | 744 | |
250 | 705 | 420 | 400 | 500 | 285 | 420 | 190 | 250 | 150 | 700 | 200 | 750 | 200 | 510 | 920 |
规格 | 减速比 | E1 | E2 | E3 | G1 | M | N | E | F | G | Z | Z×L | 输入轴 | 输出轴 | |||
HS | U | T×V | S | W×Y | |||||||||||||
40 | 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60 | 72 | 97 | 70 | 12 | 100 | 130 | 80 | 110 | 10 | 10 | M6×12 | 25 | 12 | 4×3 | 16 | 5×18.3 |
50 | 90 | 110 | 90 | 14 | 120 | 140 | 95 | 110 | 15 | 12 | M6×18 | 30 | 12 | 4×2.5 | 20 | 6×22.8 | |
60 | 102 | 129 | 100 | 15 | 130 | 150 | 105 | 120 | 18 | 12 | M8×20 | 40 | 15 | 5×3 | 25 | 8×28.3 | |
70 | 120 | 155 | 120 | 20 | 150 | 190 | 115 | 150 | 18 | 15 | M10×25 | 40 | 18 | 6×3.5 | 30 | 8×33.3 | |
80 | 140 | 180 | 140 | 20 | 170 | 220 | 135 | 180 | 18 | 15 | M12×28 | 50 | 22 | 6×3.5 | 35 | 10×38.3 | |
100 | 165 | 215 | 190 | 22 | 190 | 270 | 155 | 220 | 20 | 15 | M12×30 | 50 | 25 | 8×4 | 40 | 12×43.3 | |
120 | 195 | 255 | 220 | 25 | 230 | 320 | 180 | 260 | 25 | 18 | M14×32 | 65 | 30 | 8×4 | 45 | 14×48.8 | |
135 | 230 | 285 | 260 | 30 | 250 | 350 | 200 | 290 | 30 | 18 | M16×35 | 75 | 35 | 10×5 | 60 | 18×64.4 | |
155 | 250 | 305 | 290 | 35 | 280 | 380 | 220 | 320 | 32 | 21 | M16×35 | 85 | 40 | 12×5 | 70 | 20×74.9 | |
175 | 273 | 348 | 320 | 40 | 310 | 410 | 250 | 350 | 37 | 21 | M16×35 | 85 | 45 | 14×5.5 | 80 | 22×85.4 | |
200 | 305 | 390 | 370 | 40 | 355 | 445 | 290 | 390 | 45 | 24 | M20×36 | 95 | 50 | 14×5.5 | 85 | 22×90.4 | |
250 | 375 | 475 | 440 | 45 | 460 | 560 | 380 | 480 | 50 | 28 | M24×42 | 110 | 60 | 18×7 | 110 | 28×116.4 |
